| FEATURES |
| Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC |
| Superior Quality Standard PC/UPC/APC Polishing |
| Customer Defined Specifications |
| RoHS Compliance |
| Environmental Stable |
| Low Insertion Loss & back Reflection |
|
| APPLICATION |
| CATV Networks |
| Telecommunication Networks |
| Local Area Networks |
| FTTH and FTTx |
| Active Device Termination |
| Testing Instruments |
|
| SPECIFICATION |
| Optical Performance | Single Mode | Multi Mode |
| Insertion Loss | ≤0.20dB | ≤0.30dB |
| Return Loss | ≥45dB(PC) | ≥35dB |
| ≥50dB(UPC) |
| ≥60dB(APC) |
| Repeatability | ≤0.10dB |
| Durability | ≤0.2dB typical change,1000 matings |
| Operating Temperature | - 20 ~ +75℃ |
| Storage Temperature | - 40 ~ +85℃ |
| Parameter | 2.5μm ferrule | 1.25μm ferrule |
| UPC | APC | UPC | APC |
| Radius of Curvature | 10～25mm | 5～12mm | 7～25mm | 5～12mm |
| Apex Offset | 0～50μm | 0～50μm | 0～50μm | 0～50μm |
| Fiber Height | -100～50nm | -100～100nm | -100～50nm | -100～100nm |
| Angle | -- | 7.7-8.3degree | -- | 7.7-8.3degree |

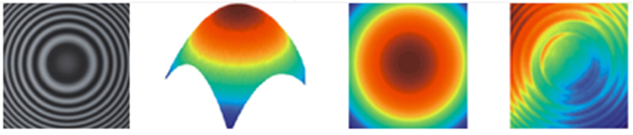

| 3D - Geometry |  |
