LC PULL UNIBOOT 连接器

1 FAST INSERTION & REMOVAL

2 JUST GRAB IT BY THE BOOT

3 NEW POLARITY CHANGE WITHIN BOOT

FEATURES
Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC
Superior Quality Standard PC/UPC/APC Polishing
Customer Defined Specifications
RoHS Compliance
Environmental Stable
Low Insertion Loss & back Reflection

APPLICATION
CATV Networks
Telecommunication Networks
Local Area Networks
FTTH and FTTx
Active Device Termination
Testing Instruments

SPECIFICATION
Optical Performance	Single Mode		Multi Mode
Insertion Loss	≤0.20dB		≤0.30dB
Return Loss	≥45dB(PC)		≥35dB
	≥50dB(UPC)
	≥60dB(APC)
Repeatability	≤0.10dB
Durability	≤0.2dB typical change,1000 matings
Operating Temperature	- 20 ~ +75℃
Storage Temperature	- 40 ~ +85℃
Parameter	2.5μm ferrule		1.25μm ferrule
	UPC	APC	UPC	APC
Radius of Curvature	10～25mm	5～12mm	7～25mm	5～12mm
Apex Offset	0～50μm	0～50μm	0～50μm	0～50μm
Fiber Height	-100～50nm	-100～100nm	-100～50nm	-100～100nm
Angle	--	7.7-8.3degree	--	7.7-8.3degree

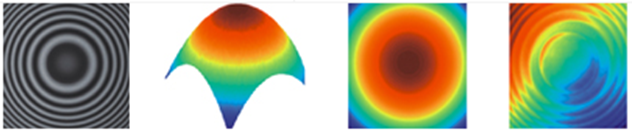

3D - Geometry
